XM-PRO bundle ( with EARLY BIRD discounts! )
From €279.90
Configure your XM-PRO v1.2D motherboard bundle starting from €299.90 €279.9 + VAT in Europe.
IMPORTANT: No VAT taxes are applied to orders placed from outside Europe, or to B2B orders in Europe (with a valid company EORI/VAT number). Please indicate a valid personal ID (or driver license or similar ID) at the checkout page “Order notes” for all international orders outside the EU, where the EU VAT legislation do not apply. It’s a mandatory field for the “customs invoice” and we will not deliver such orders without that personal ID.
The only multi-CRT + HDMI + 4-player SNAC + multi-ARCADE (JVS & JAMMA) + multi-HOST all-in-one boards currently compatible with both #MiSTerFPGA and #MARSFPGA!!. You will be able to upgrade your DE10-Nano FPGA carrier board in the future if you start from it!.
Take advantage of this EARLY BIRD discounts on all the XTREME boards and on the DE10-Nano!. They won’t last forever!.
Estimated start of delivery on November-December 2023, depending on the bundle configuration and on the level of demand. This is an estimation not a firm date. Product deliveries may be delayed due to external factors.
XTREME motherboard

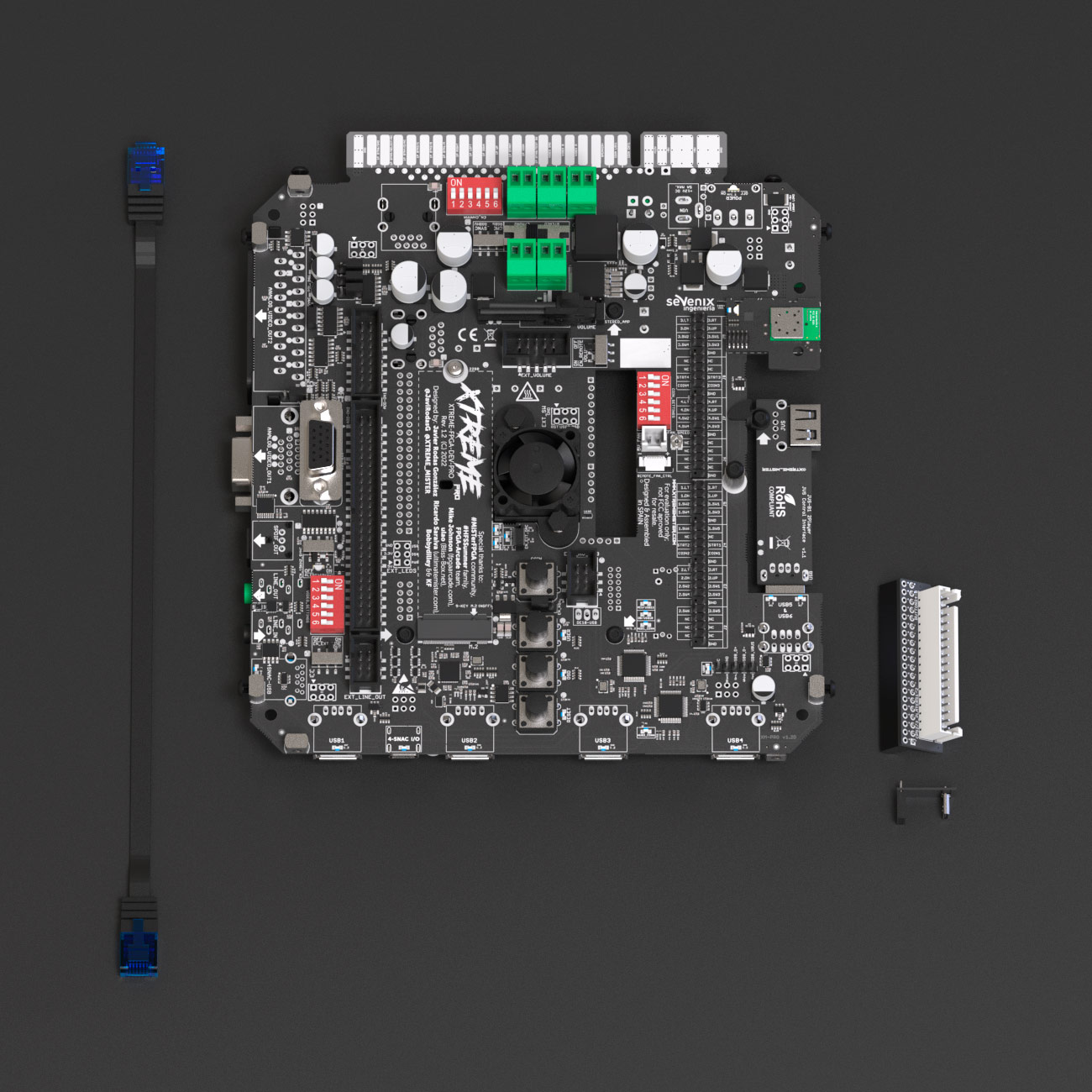

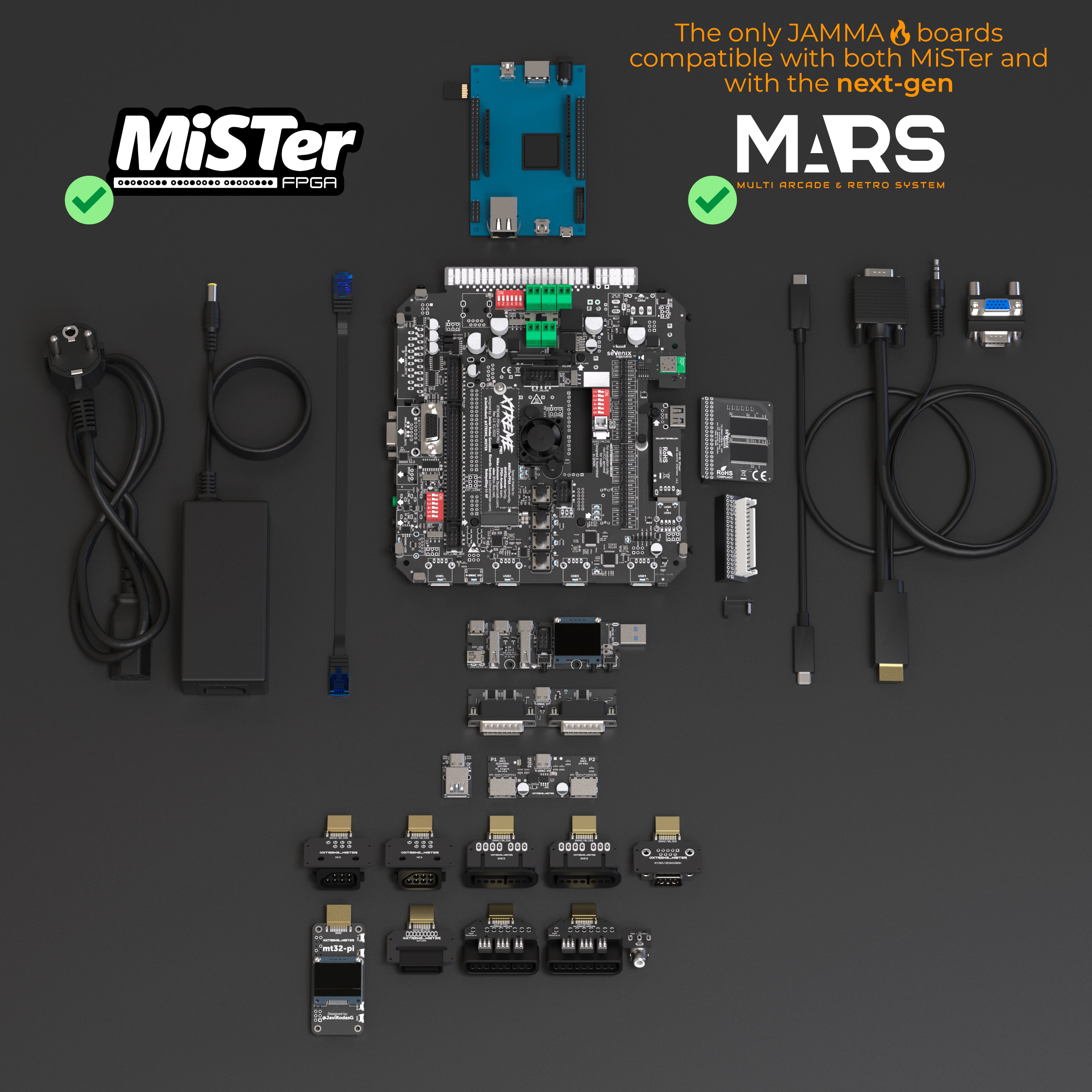

It includes 1x XM-PRO v1.2D motherboard, 1x M.2 SSD embedded adapter, 1x RJ45 25cm extension cable, 1x custom XTREME 25x25mm cooler with two spring-fasteners and a ultra-silent double bearing fan (pre-assembled), 1x non-adhesive silicone thermal pad, 1x USB-Bridge, 1x Mini Wireless Keyboard+Mouse (Iggual IGG317013), 1x MicroSD USB2.0 reader, 1x USB-C to USB3.0 OTG cable, 3x 16mm HEX F-F studs, 9x M3 black screws, 1x M3 nut, 1x JVS-B1 dongle, 1x RTC, 3x Temp sensors…
NOTE: The RTC 3V CR2032 battery is not included!.
NOTE: The RTC 3V CR2032 battery is not included!.

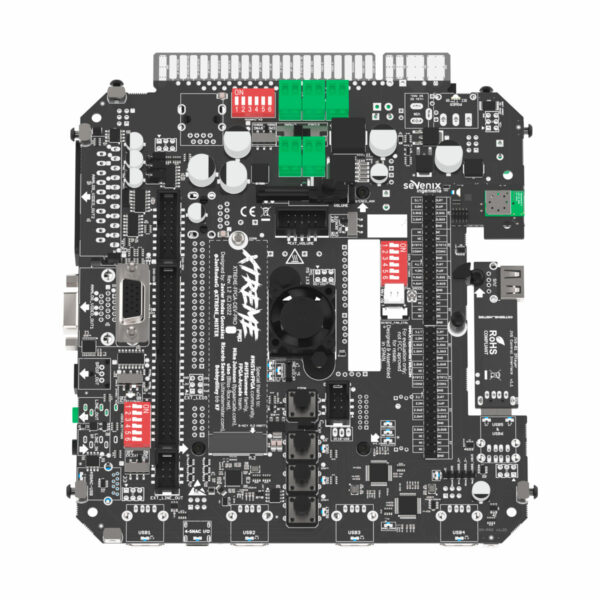

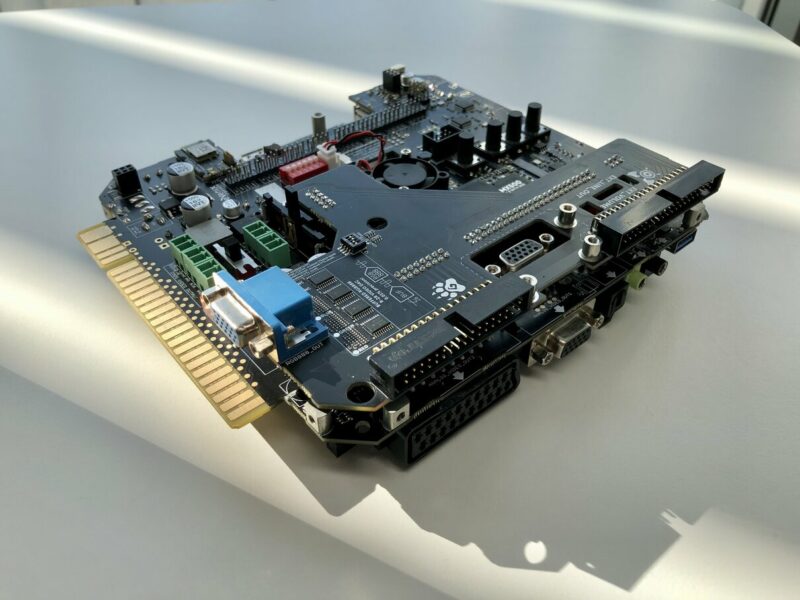

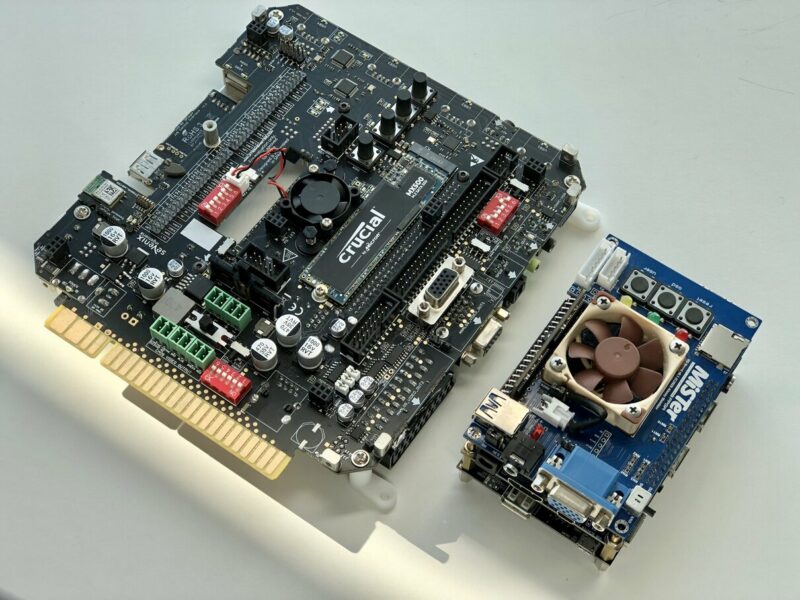

1 × XM-PRO motherboard (M.2 SSD embedded adapter, multi-HOST, 4-player USB2.0 encoder, 4SNAC, JVS & JAMMA built-in)
€279.90
FPGA carrier board
Take advantage of this EARLY BIRD discount on the DE10-Nano!. It won't last forever!.
The FPGA is the core of the retro-gaming platform. It provides the most accurate REAL-TIME HARDWARE emulation for retro-gaming, with the lowest possible audio/video/input lags, real-time video upscaling, real-time video filters...
1 × Terasic DE10-Nano: Includes an assembly & testing fee. 128GB MicroSD card pre-loaded with an open-source MiSTer FPGA image.
€229.90
1 × Terasic DE10-Nano: Includes an assembly & testing fee. 512GB MicroSD card pre-loaded with an open-source MiSTer FPGA image.
€244.90
SDRAM memory module
Unofficial XTREME SDRAM memory modules. They were designed to meet the best possible Signal Integrity (SI) and Power Integrity (PI) performance for the DE10-Nano carrier board. The M2 is implemented using 4x 32MB chips and reaches sustained speeds typically between 144 and 148MHz on MiSTer FPGA (memtest). The M1 is faster, implemented using 2x 64MB smaller BGA chips which allow a better SI. It typically maintains a stable 150MHz all-day-long on normal room-temperature conditions. Both are compatible with all MiSTerFPGA cores such as JT, Saturn, etc. You only need one but you can purchase both if you have several DE10-Nano setups. The future alternative FPGA CARRIER boards such as #MARSFPGA will NOT need any of these external SDRAM modules, as all memory interfaces (DDR4, SDRAM, SRAM and FPGA BRAM) are embedded for optimal performance.
1 × 7IX SDRAM 128MB M2 v2.2
€49.90
1 × 7IX SDRAM 128MB M1 v1.4
€69.90

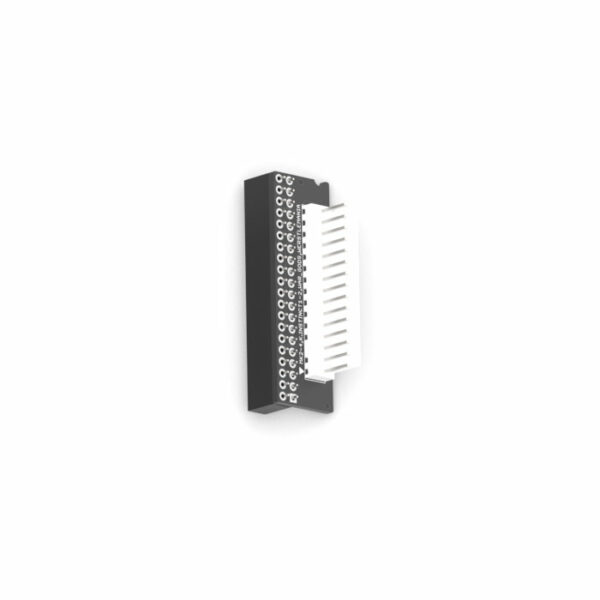

KICK-HARNESS

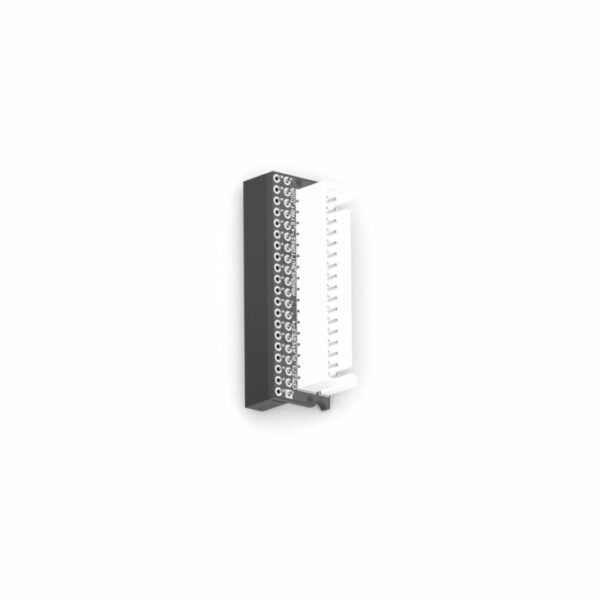

Up to 4-player KICK-HARNESS for different Capcom and Midway original cabinets.

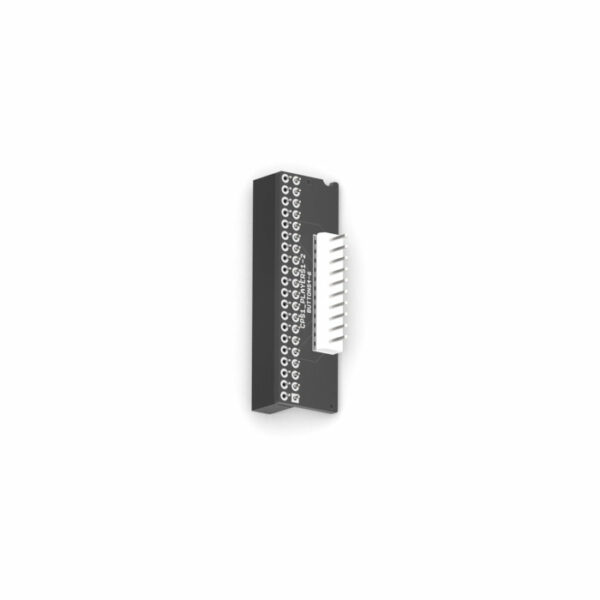

1 × CPS1 Players 1-2 (buttons 4-6) harness
€4.90

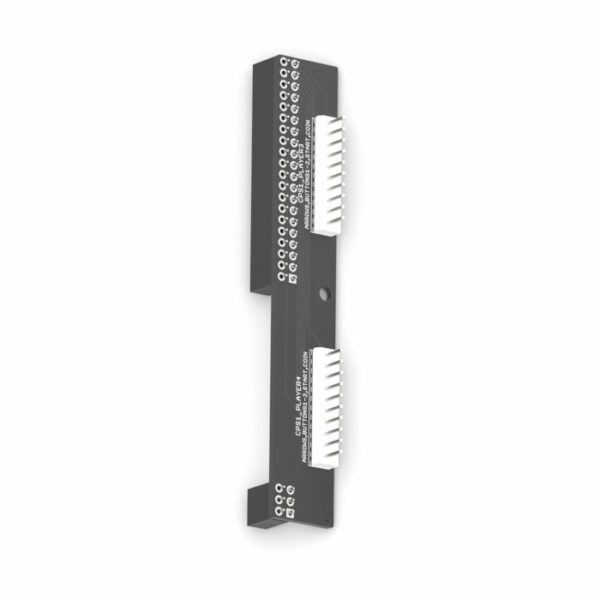

1 × CPS1 Players 3-4 (arrows, buttons 1-2, start, coin) harness
€4.90
1 × CPS2/3 Players 1-2 (buttons 4-6) harness
€4.90
1 × CPS2/3 Players 3-4 (arrows, buttons 1-4, start, coin) harness
€4.90
1 × Midway Mortal Kombat 1, Players 1-2 (buttons 4-6) harness
€4.90
1 × Midway Mortal Kombat 2-4, Killer Instinct 1-2, War Dogs, WrestleMania, Players 1-2 (buttons 4-6) harness
€4.90

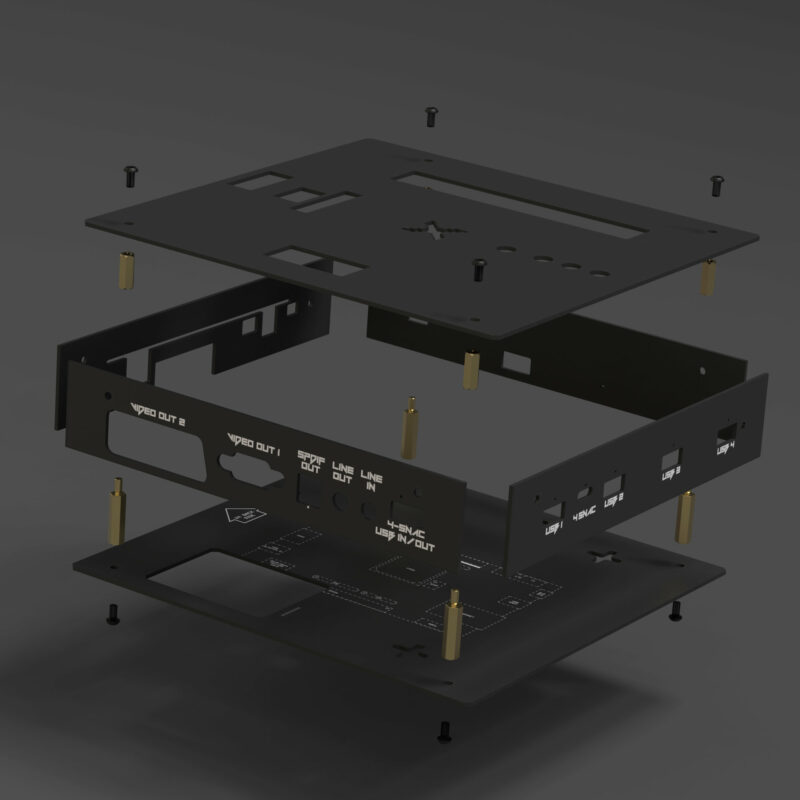

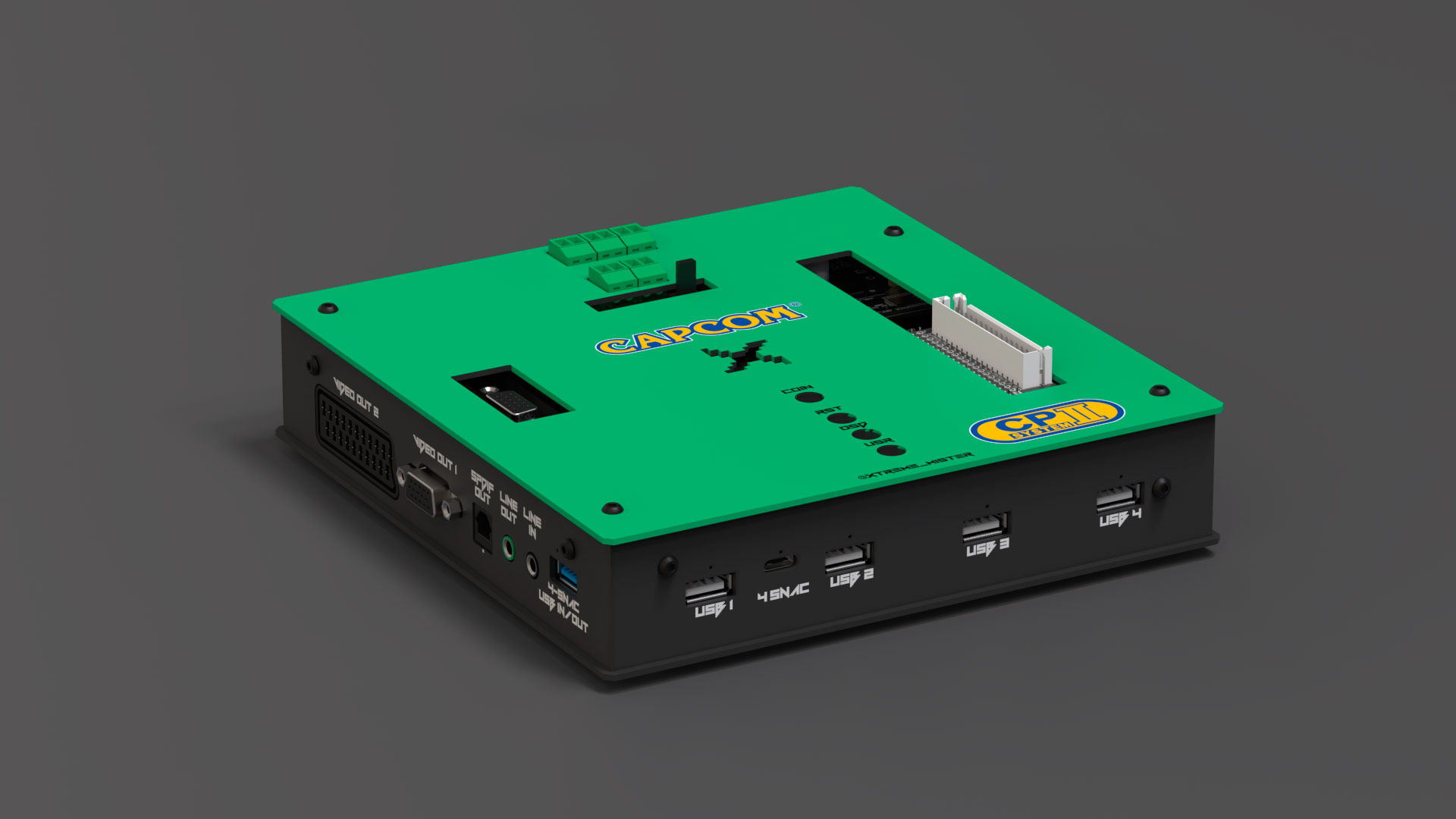

Enclosure
You have also the option to CUSTOMIZE the TOP plate using a UVI printing custom design. Please order it separately at the main SHOP page, with the option to upload a custom design (JPG, PNG, PDF, AI, PSD...) media file for the TOP plate. Some open-source templates are available at the XTREME resources repository.
Alternatively, you can order the BLACK plates (as shown below) and UVI print them (or add a custom vinyl decal) by your own.
You also have the option to 3D print (or customize) any of our OPEN-SOURCE enclosures. More information at the main page. Finally, a premium metal enclosure option could be available in the future.

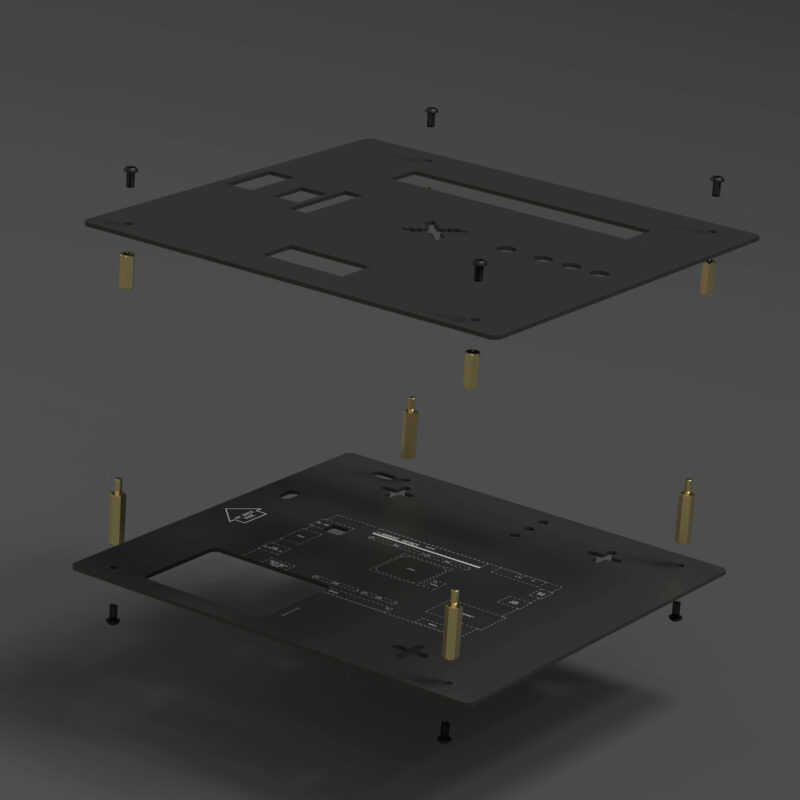

1 × XM-PRO and XM-PRO Lite FR4 1.6mm (BLACK finish): 1x TOP and 1x BOTTOM plates, 8x HEX spacers, 8x M3 Black screws
€9.90
1 × XM-PRO FR4 1.6mm (BLACK finish): 1x TOP, 1x BOTTOM and 4x LATERAL plates, 8x HEX spacers, 8x M3 Black screws
€29.90
Available on backorder
Product Description

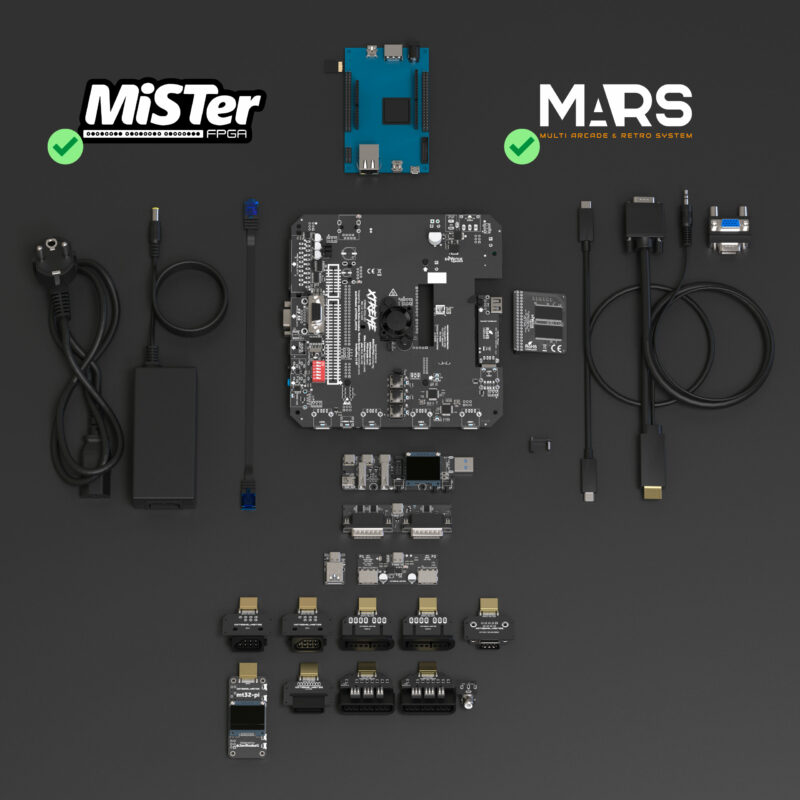

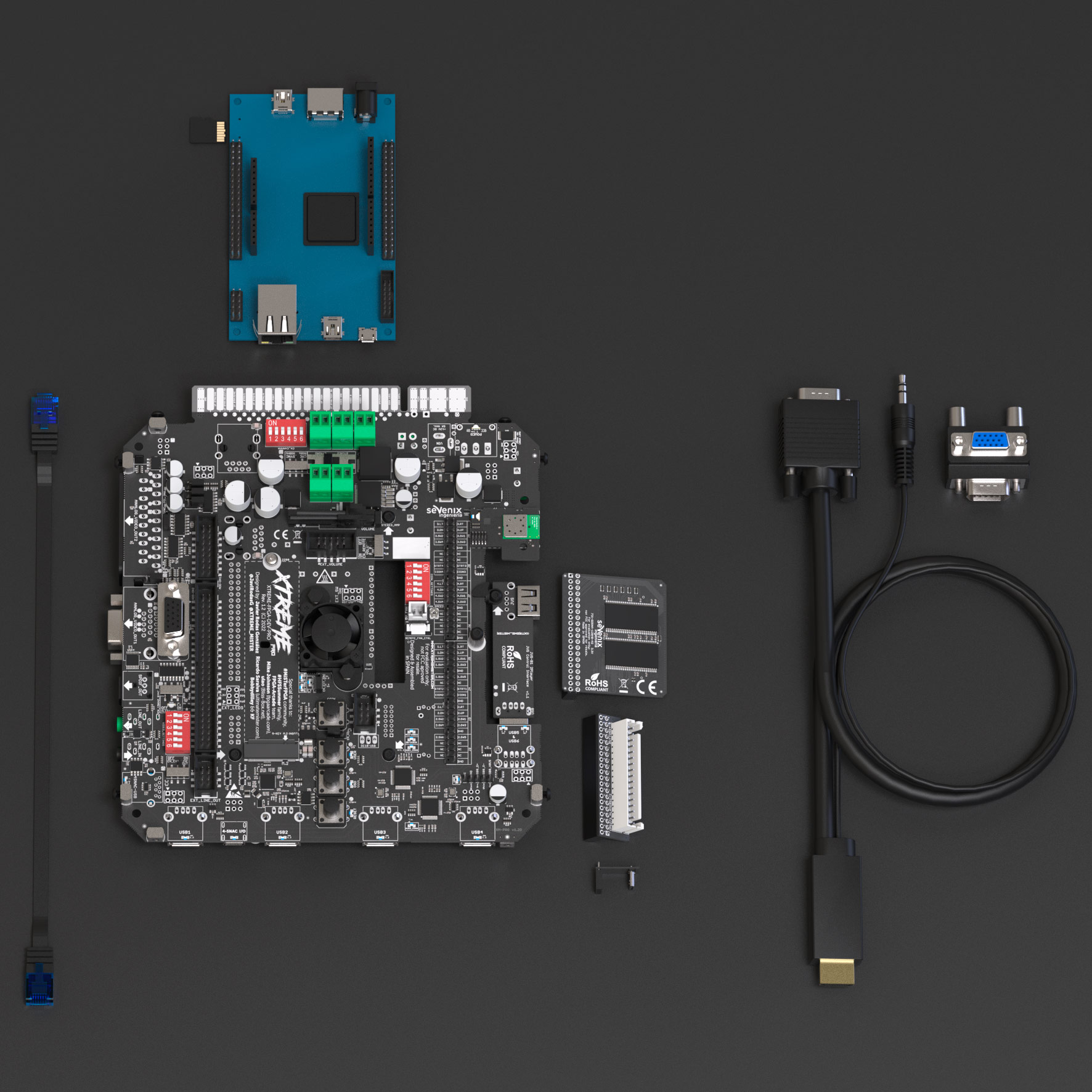

- 1x XM-PRO v1.2D motherboard, 1x RJ45 25cm extension cable, 1x custom XTREME 25x25mm cooler with two spring-fasteners and a ultra-silent double bearing fan (pre-assembled), 1x non-adhesive silicone thermal pad, 1x USB-Bridge, 1x Mini Wireless Keyboard+Mouse (Iggual IGG317013), 1x MicroSD USB2.0 reader, 1x USB-C to USB3.0 OTG cable, 3x 16mm HEX F-F studs, 9x M3 black screws, 1x M3 nut, 1x JVS-B1 dongle, 1x RTC, 3x Temp sensor…
NOTE: The RTC 3V CR2032 battery is not included!. - Optionally add: 1 x Terasic DE10-Nano (includes an assembly & testing fee, and a 128GB or 512GB MicroSD card pre-loaded with an open-source image).
- Optionally add: 1 x XTREME SDRAM (only one is needed).
- Optionally add: 1 x XTREME HDMI-to-VGA (1080p 24bit) adapter and XTREME VGA right-angle adapter.
- Optionally add: 1 x XTREME KICK-HARNESS.
- Optionally add: 1 x XTREME 4SNAC bundle (not available as separated parts at this moment).
- Optionally add: 1 x XTREME 4SNAC-USB adapter.
- Optionally add: 1 x Power Supply.
- Optionally add: 1 x Enclosure option (with customizable finish).
Additional Information
| Weight | 3000 g |
|---|---|
| Dimensions | 40 × 30 × 20 cm |
